Peplink: Pepwave Max Transit Duo w/ PrimeCare
|
|
Price: From $799.00 to $1,428.00
Manufacturer: Peplink
Manufacturer Part No: MAXTSTDUOLTEAWTPRM
Product Options
| Pepwave Essentials Care: |
|
|

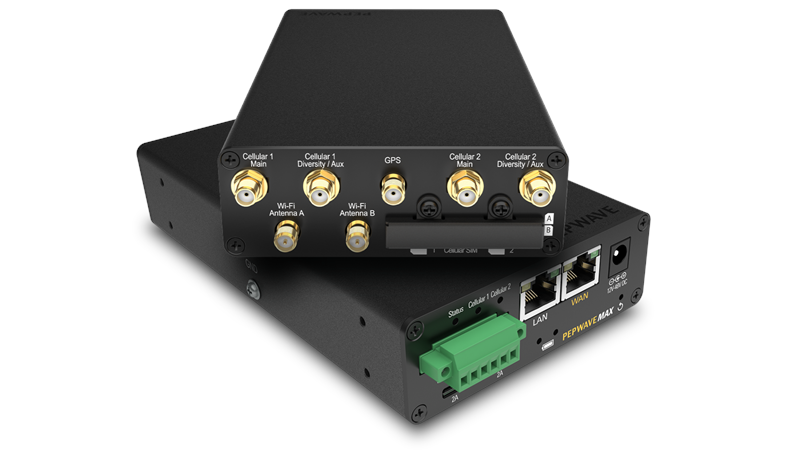

MAX Transit Duo
Built for Transportation Deployments
With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and two embedded LTE modems, the MAX Transit Duo is ready to deliver fast, reliable connectivity in transportation and public safety deployments
| Embedded 4G LTE/3G |
2 |
| SIM Card Size |
Mini-SIM (2FF) |
| Redundant SIM Slots |
Yes |
| Ethernet WAN Ports |
1 (GE) * |
| Ethernet LAN Ports |
1 (GE) |
| Recommended Users |
150 |
| Router Throughput # |
400Mbps |
| Wi-Fi Standard |
802.11ac/a/b/g/n 2×2 MIMO |
| Maximum number of SSID: |
16 |
| Transmit Power (2.4GHz) | (5GHz) |
19dBm | 21dBm |
| Simultaneous Dual-Band Wi-Fi AP |
Yes |
| Wi-Fi as WAN |
Yes |
| High Availability |
Yes |
| WAN as LAN |
Yes |
| Web Blocking |
Yes |
| Content Filtering Blacklist |
Lite |
| PepVPN |
Yes |
| SpeedFusion Hot Failover |
Yes |
| SpeedFusion WAN Smoothing |
No ^ |
| SpeedFusion Bandwidth Bonding |
No ^ |
| Number of PepVPN/SpeedFusion Peers |
2/5 & |
| PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) |
100Mbps | 60Mbps |
| Number of IPsec Tunnels |
5 |
| Enclosure |
Indoor Metal |
| Terminal Block Power Connector for Mobile/Vehicular Deployment |
Yes |
Dimensions
(Height x Width x Depth) |
6.3 x 3.8 x 1.3 inches |
160 x 97 x 33.5 mm |
| Weight |
1.3 pounds |
590 grams |
| AC Adapter |
AC Input 100V – 240V / DC Output 12V, 2A |
| Power Input |
2x Micro-USB B with 5V, 2A each |
| Power Consumption |
18W (max.) |
| Operating Temperature |
-40° – 149°F |
-40° – 65°C |
| Humidity |
15% – 95% (non-condensing) |
| Certifications |
– FCC, CE, RoHS
-E-Mark
-EN 61373:1999 IEC 61373:1999
Shock and Vibration Resistance
-EN 50155
Railway Applications – Electronic
Equipment used on Rolling Stock
-EN 61000
Electromagnetic Compatibility |
| Warranty |
1-Year Limited Warranty |
* The WAN port can act as a LAN port if needed.
^ Feature is available as an add-on license OR PrimeCare model.
& 2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled for PrimeCare models which requires PrimeCare Subscription, complementary for the first year.
# Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN.
|
|
| | |
|
