PCTEL: 3-1 ANTENNA, COACH MAG, GNSS, DUAL LTE, WHIT

Price: $250.00

Item Number: GLHPDLTE-SF-MM

Manufacturer Part No: GLHPDLTE-SF-MM

Quantity:

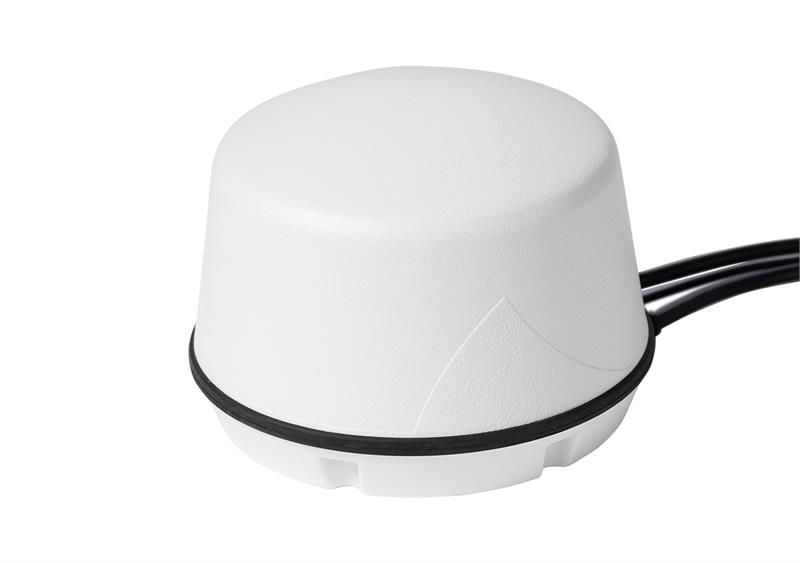

The Coach antennas provide optimal 4G LTE and dual-band 802.11ac Wi-Fi coverage in a single, low-profile housing. The antennas also incorporate PCTEL’s unique high rejection GPS/GLONASS technology for optimal performance and support of carrier voice and data networks.

Features

No tune, multi-band coverage: dual 4G LTE, dual or triple 802.11 ac Wi-Fi MIMO options, and GPS L1/Galileo/GLONASS frequencies
IP67 compliant design provides maximum protection against water or dust ingress under severe environmental conditions*
UV-resistant black or white housing options complement most vehicular aesthetic requirements
Proprietary filtering design allows wideband coverage while achieving superior out-of-band rejection for all GNSS frequencies

SKU	GLHPDLTESFMM
Manufacturer Part Number	GLHPDLTE-SF-MM
Manufacturer	PCTEL
Antenna Category	Multi-Band (Cellular, WiFi, and/or GPS)
Working Frequency	698-960 MHz / 1710-2700 MHz
Gain	2.5 dBi
Antenna Style	Mobile Antenna
Polarity	Vertical
Bands	Multi
SISO or MIMO	MIMO
Directional or Omni	Omnidirectional
Impedance	50 ohm
Max Input Power (W)	50
VSWR: < X: 1	< 2.0:1
Height/Length (inches)	5.1
Height/Length (mm)	130
Width (inches)	3.6
Width (mm)	92
Weight (lbs)	2.5
Material	UV-Stable Rugged Thermoplastics
Operating Temp (celsius)	-40°C to +85°C
Mount Style	Magnetic
Color	White
Cable Length (inches)	204
Cable Length (mm)	5000
Connector 1	SMA-Male
IP Rating	IP67
OK for Outdoor Use	Yes
Vehicular	Yes
Ground Plane Required	No
Product Condition	New
