Multi-Band Omni-Directional Antenna 170668-000

Price: $149.99

Item Number: 170668-000

Quantity:

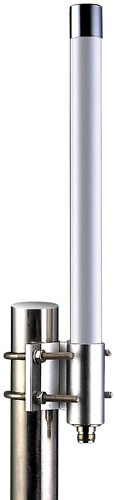

Multi-Band Omni-Directional Antenna

Part #: 170668-000

Cradlepoint’s Dual-Band Omni-Directional Antenna collects the cell tower signal and sends it through the cable to the integrated or embedded Cradlepoint modem and router. When the modem transmits, the signal is transferred directly to the antenna and broadcasted back to the cell tower.

FEATURES

High-gain
Weather resistant
Built-in ground plane
Slim and unobtrusive
Mounting bracket included
Installs Easily
For fixed installations

Package Contents

Multi-Band Omni-Directional Antenna
Wall Mount Bracket
U-bolt assembly
N Type Female Connector

Technical Specifications

Part Number: 170668-000
Frequency Range: 698-960 MHz / 1710-2170 MHz / 2496-2690 MHz
Nominal Impedance: 50 ohms
Antenna Gain: 3.5 dBi 698-960 MHz / 4.5 dBi 1710-2170 MHz / 3.1 dBi 2496-2690
Radiation: Omni
Polarization: Vertical (Linear)
Ground Plane: Built-in
Connector: N Type Female
Internal Material: Copper
Height: 12.6 inches / 32 cm
Weight: 150 g
