InHand Networks: InRouter302 Industrial LTE Router - No WiFi
|
Item Number: IR302-FQ38
Manufacturer: InHand Networks
Manufacturer Part No: IR302-FQ38
|

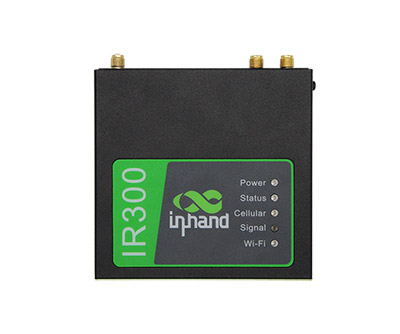

InRouter300 Compact Industrial LTE Router
Build Your Digital Network with Greater Ease
The InRouter300 (IR300) is a compact M2M LTE router integrating 4G LTE, Wi-Fi, and VPN technologies. Equipped with complete functions, it is applied in various industries and applications. Cost-effectiveness and higher reliability enable you to build a digital network with greater ease.
What is special about the InRouter300?
The InRouter300 LTE router is a compact, reliable, secure and powerful M2M connectivity solution for commercial and industrial scenarios.
● Compact size, easy for mass deployment
● Watchdog and multi-layer link detection mechanisms, reliable connectivity
● Strong security measures for data transmission, network and device access
● Remote management, easy for batch configuration
InRouter300 Hardware SpecificationsItemInRouter301InRouter302Hardware PlatformCPU Platform580MHzRAM128MB DDR2Flash32MB SPIInterfacesEthernet Ports 1*10/100Mbps fast Ethernet port, LAN/WAN port1.5KV network isolation transformer protection
2*10/100Mbps fast Ethernet port, LAN/WAN port
1.5KV network isolation transformer protection
Serial Port 1*RS-232, 1*RS485*1(DB9); ESD protection: 15KVNo serial port Power Supply DC9-36V, over-current protection, anti-reverse connection, 2 PIN industrial terminal blockReset Button Pinhole reset button SIM Card Dual drawer-type SIM card slots
Dual drawer-type SIM card slots. 2FF SIM
Wi-Fi (Optional)IEEE 802.11b/g/n, 150MbpsAntenna Connector
4G: SMA x 1;
Wi-Fi: RP-SMA x 1
3G/4G: SMA x 1;
Wi-Fi: RP-SMA x 1
Note: North America models (FQ38, FQ33): 2 x SMA 4G antenna connectors.
Ground Terminal
Supported
Mechanical Dimensions 90 x 90 x 25mmWeight 259gInstallation Method Panel mounting, DIN-rail mountingProtection Rating IP30 HousingMetalCooling FanlessPower RateWorking Power 100mA-120mA@12VStandby Power 80mA-90mA@12VPeak Power 190mA@12.0V Wi-Fi Transmit Power
Transmit Power
802.11b:16dBm +/-2dBm(11Mbps) 802.11g:16dBm +/-2dBm(54Mbps) 802.11n@2.4GHz:16dBm +/-2dBm(HT20 MCS7)
802.11n@2.4GHz:16dBm +/-2dBm(HT40 MCS7)
Ambient EnvironmentStorage Temperature-40 ~ 85℃Operating Temperature-20 ~ 70℃Humidity 5 ~ 95% (non-condensing)IndicatorLED Power, Status, Cellular, Wi-Fi, cellular SignalEMCStatic EN61000-4-2, level 2Radio Electric Field EN61000-4-3, level 2Pulsed Electric Field EN61000-4-4, level 2Surge EN61000-4-5, level 2Conducted Disturbance Immunity EN61000-4-6, level 2Shock Wave Resistance EN61000-4-12, level 2Power Frequency Magnetic Field Resistance EN61000-4-8, horizontal/vertical 400A/m (>level 2)PhysicalShockproof IEC60068-2-27Vibration Resistance IEC60068-2-6Free Fall IEC60068-2-32CertificationCE, FCC, PTCRB, IC, Verizon, AT&T, T-mobile (in progress)
|
|
| | |
|
