InHand Networks: EdgeRouter800 Cloud-Managed Edge Router - (ER805-NRQ3-WLAN)
|
|
Item Number: ER805-NRQ3-WLAN
Manufacturer: InHand Networks
Manufacturer Part No: ER805-NRQ3-WLAN
|

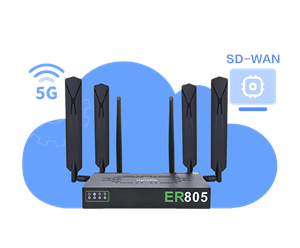

EdgeRouter800 | Cloud-Managed Edge Router
EdgeRouter800 series products are cloud-managed SD-WAN edge routers launched by InHand for 5G network era. Together with the InCloud Manager SaaS service, it provides customers with high-speed, secure network connection and one-stop network management service. We are here to power your business with unlimited possibilities.
| Hardware platform |
| Firewall throughput |
600Mbps |
| VPN throughput |
200Mbps |
|
|
|
|
| Recommended users |
50 |
| Interface description |
| Cellular |
5G, downlink 2Gbps,Sub6 (450MHz to 6GHz) 4G |
| Ethernet port |
5*10/100/1000MbpsEthernet port,
WAN/LAN, dual WAN
VLAN
|
| USB port |
1*USB 3.0 |
| SIM |
Dual SIM, Nano SIM |
| RESET |
Reset button |
| Antenna interface |
5G cellular*4/4G cellular*2,
Wi-Fi*2
|
| Wi-Fi |
| Frequency |
Dual frequency 2.4/5GHz Wi-Fi |
| Transmission bandwidth |
Maximum 1200Mbps |
| Transfer Protocol |
802.11 ac/a/b/g/n Wave2 MU-MIMO |
| Maximum output power |
2.4g:17dBm 5g:17dBm |
| Operating mode |
AP/Client mode |
| Power Supply |
| Pin |
Power supply |
| Input voltage |
Input voltage: 9-48VDC |
| Power Consumption |
12W |
| Ambient Temperature and Humidity |
| Working Temperature |
-20°C to + 70°C |
| Storage Temperature |
-40°C to + 85°C |
| Humidity |
95％RH at 60°C |
| Protection Rating |
IP30 |
| Installation |
| Desk |
Desk-top |
| Wall |
Wall mounting |
| EMC |
| Electromagnetic Compatibility |
II |
| Mechanical Features |
| Dimensions (mm) |
210mm * 140mm * 35mm |
| Features |
Wall mounting, metal shell, fan-less cooling |
|
|
| | |
|
