CellCracker by GotRad: Sierra Wireless HL7800 LPWA module

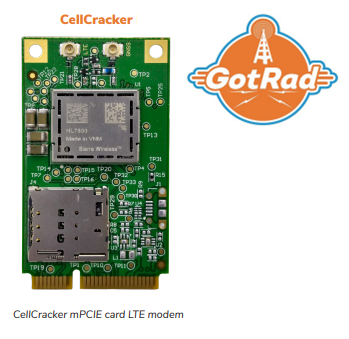

This product is an LTE cellular M1 radio with support circuitry mounted on a Mini PCIe carrier card.
Cellular connectivity is accomplished by the integrated HL7800-M module from Sierra Wireless. The
product has PTCRB* device level certification as well as FCC certification and is AT&T End-Device
certified*; allowing for direct and immediate use in most end products with no further certification.

CellCracker provides access to communications interfaces through Mini PCIe connection with a host
board. For increased flexibility, this product is also available as a USB only modem with connection
through an on-board USB Micro-B connector.

CellCracker supports a variety of SIM card options for greater flexibility in customer applications.
The device defaults to the on-board SIM slot as well as supporting the use of a host board’s SIM via
the Mini PCIe connection.
