Peplink: Pepwave Max Transit Duo w/ PrimeCare

Price: From $799.00 to $1,428.00
Manufacturer: Peplink

Product Options

Pepwave Essentials Care:

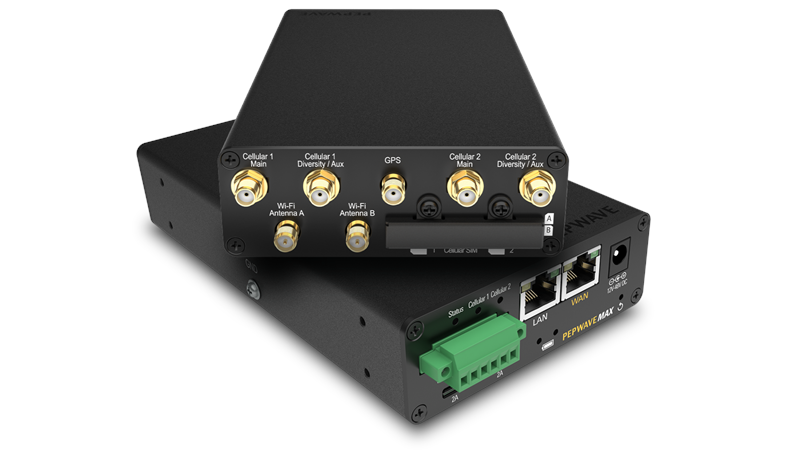

MAX Transit Duo
Built for Transportation Deployments
With a compact form factor, simultaneous dual-band 11ac Wi-Fi, and two embedded LTE modems, the MAX Transit Duo is ready to deliver fast, reliable connectivity in transportation and public safety deployments

Embedded 4G LTE/3G 2
SIM Card Size Mini-SIM (2FF)
Redundant SIM Slots Yes
Ethernet WAN Ports 1 (GE) *
Ethernet LAN Ports 1 (GE)
Recommended Users 150
Router Throughput # 400Mbps
Wi-Fi Standard 802.11ac/a/b/g/n 2×2 MIMO
Maximum number of SSID: 16
Transmit Power (2.4GHz) | (5GHz) 19dBm | 21dBm
Simultaneous Dual-Band Wi-Fi AP Yes
Wi-Fi as WAN Yes
High Availability Yes
WAN as LAN Yes
Web Blocking Yes
Content Filtering Blacklist Lite
PepVPN Yes
SpeedFusion Hot Failover Yes
SpeedFusion WAN Smoothing No ^
SpeedFusion Bandwidth Bonding No ^
Number of PepVPN/SpeedFusion Peers 2/5 &
PepVPN/SpeedFusion Throughput (No Encryption) | (256-bit AES) 100Mbps | 60Mbps
Number of IPsec Tunnels 5
Enclosure Indoor Metal
Terminal Block Power Connector for Mobile/Vehicular Deployment Yes
(Height x Width x Depth)
6.3 x 3.8 x 1.3 inches |
160 x 97 x 33.5 mm
Weight 1.3 pounds |
590 grams
AC Adapter AC Input 100V – 240V / DC Output 12V, 2A
Power Input 2x Micro-USB B with 5V, 2A each
Power Consumption 18W (max.)
Operating Temperature -40° – 149°F |
-40° – 65°C
Humidity 15% – 95% (non-condensing)
Certifications – FCC, CE, RoHS
-EN 61373:1999 IEC 61373:1999
Shock and Vibration Resistance
-EN 50155
Railway Applications – Electronic
Equipment used on Rolling Stock
-EN 61000
Electromagnetic Compatibility
Warranty 1-Year Limited Warranty


*  The WAN port can act as a LAN port if needed.
^ Feature is available as an add-on license OR PrimeCare model.
&  2 PepVPN Peers are enabled by default. 5 PepVPN Peers are enabled for PrimeCare models which requires PrimeCare Subscription, complementary for the first year.
# Router Throughput and PepVPN/SpeedFusion Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision. The throughput result is tested with DHCP/Static IP WAN.
