Pantheon MA750 5-in-1 Permanent Mount Antenna

Price: $268.19
Manufacturer Part No: MA750.W.B.ABICG.003

Product Options

2 x 5G/4G 600-6000MHz Antennas (MIMO)

1 x GPS/GLONASS/Galileo 1575.42/1602MHz Active Antenna
2 x Wi-Fi 2.4GHz/5.8GHz Antennas (MIMO)
IP67 Waterproof
Front End SAW Filter
High Efficiency / Peak Gain Outdoor Antenna
Dimensions: Ø143.2 x 82.4mm
Fully Customizable Cable and Connectors
RoHs & Reach Compliant

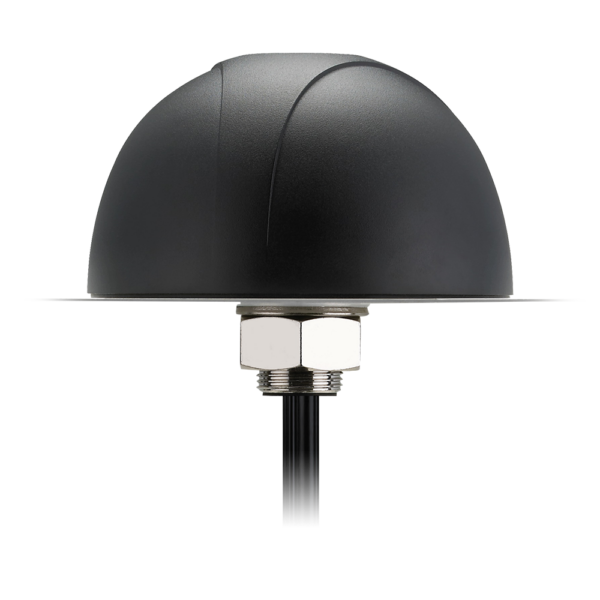

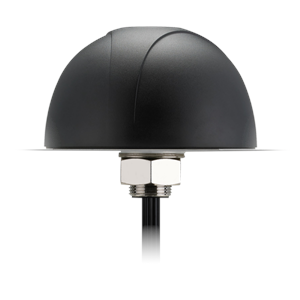

The Taoglas MA750 Pantheon 5-in-1 antenna is an omnidirectional heavy-duty, fully IP67 waterproof external M2M antenna for use in telematics, transportation, and remote monitoring applications. This unique antenna delivers powerful MIMO antenna technology for 5G/4G Cellular and Wi-Fi, plus GNSS for next-generation multiple wireless technology systems. The GNSS antenna covers the GPS/GLONASS/Galileo bands and includes a Front End SAW Filter for improved performance.

The Pantheon MA750 covers all 5G bands from 600-6000MHz, exhibiting excellent performance at key 5G bands such as band 71(617MHz) and the repurposed CBRS and C-band frequencies from 3400-4200MHz. This ensures the Pantheon is prepared for mission critical applications.

Typical Applications Include:
– Public Safety
– Passenger Bus and Rail Services
– Digital Signage
– Commerical Transportation and Fleet Management

All five high-performance antennas are integrated into an extremely robust IP67 permanent mount compact antenna package measuring just 82.4mm in height and 143.2mm in diameter.

The antenna has its own ground-plane and can radiate on any mounting environment like metal or plastic without affecting performance. The cables are low loss allowing for lengths of up to 10 meters (32′ and 9.70″), critical for buses, trains, and other commercial transport applications.

Customized cables and connector version available
