PANORAMA ANTENNAS, INC.- WMM2G-6-60-05NJ

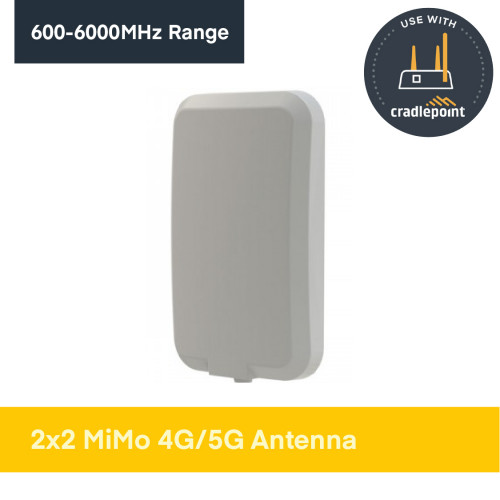

The WMM2G-6-60 is a high gain directional 2x2 MiMo antenna for 4G and 5G networks. It incorporates two wideband element assemblies in a single housing and is designed to support fixed site client devices. It offers 6dBi peak gain for 617- 960MHz and 9dBi peak gain for 1710-6000MHz.

The weather resistant housing is designed for wall or mast mounting with the supplied hardware.

• 2x2 MiMo High Gain Directional Antenna for 4G/5G

• Frequency range 617-960/1710-6000MHz

• Suitable for wall or mast mounting



The standard WMM2G-6-60-5SP version has 5m length ultra-low loss CS32 type coaxial cables which eliminates exposed connector joints and simplifies the installation process.

The WMM2G-6-60-05NJ version has 50cm length cables, fitted with N type jacks, which is ideal for installations that require a longer cable run, where Panorama’s CS240 or CS400 type coaxial cable can be used to minimise the cable insertion loss.

The WMM2G-6-60 is a value added product for network operators and service providers by improving the link resilience to the router, achieving increased data rates for the subscriber, resulting in customer satisfaction and retention.
