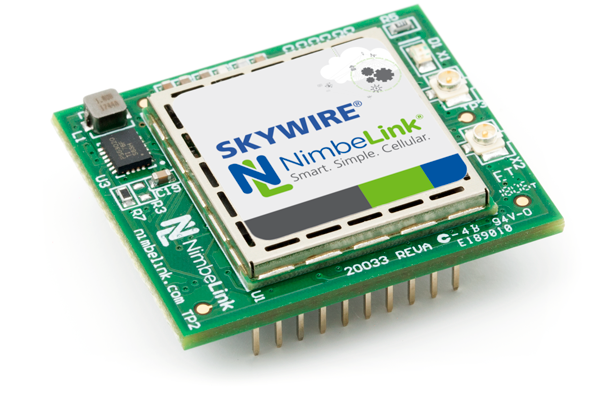

Nimblelink: Skywire 4G LTE CAT 1 Embedded Modem #NL-SW-LTE-S7648

Price: $85.00
Item Number: NL-SW-LTE-S7648
Manufacturer: NimbleLink
Manufacturer Part No: NL-SW-LTE-S7648

The patented Skywire® 4G LTE CAT 1 modem is end-device certified with PTCRB, FCC, IC and AT&T carrier certified which enables fast and cost-effective development. And, like all Skywire’s, this modem is designed to be easy to integrate and accelerate time to market. All Skywire modems are available with data plans from Major North American carriers as well.

  • For AT&T, T-mobile and other PTCRB approved networks
  • Carrier certifications complete, no additional work required
  • Removable SIM card slot
  • Antenna independent certification increases selection flexibility
  • Connectivity via USB or UART
  • Supports a wide range of I/O voltages for design flexibility
  • Skywire standard interface

  • Throughput: 10Mbps Download/5Mbps Upload
  • Average Power: 135 mA
  • Peak: 335 mA
  • Idle: 35 mA
  • Sleep Mode: 18 mA
  • Input Voltage: 3V-5.5V
  • I/O Voltage: 1.65V-5.5V
  • Temperature Range: -40º to 85ºC
  • Dimensions: 29mm x 33mm x 10.5mm
  • RoHS compliant
